75+100mm 4-Screw VESA Adapter (#0147)

Table of Contents

Overview

Overview

Choose a store to purchase

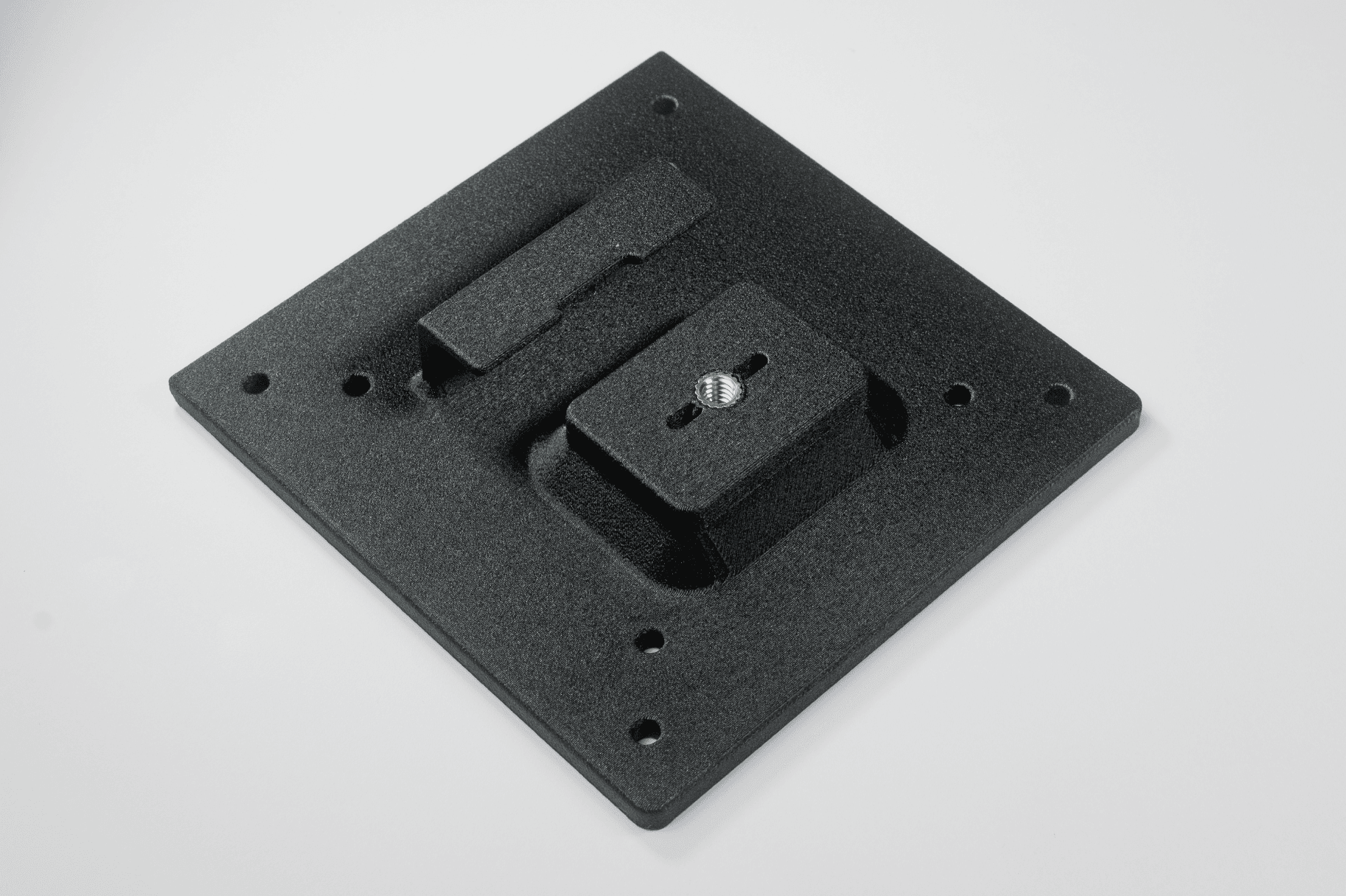

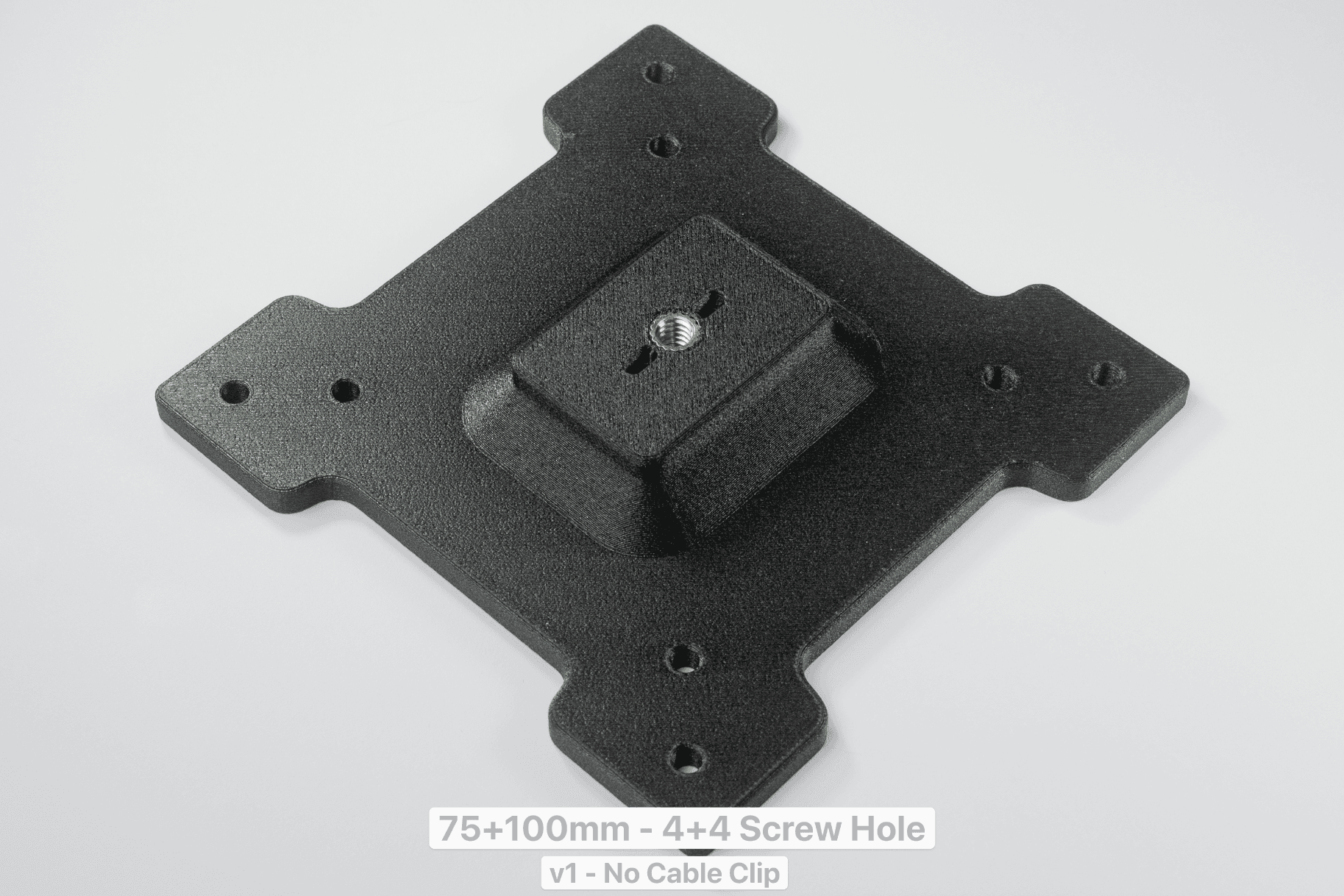

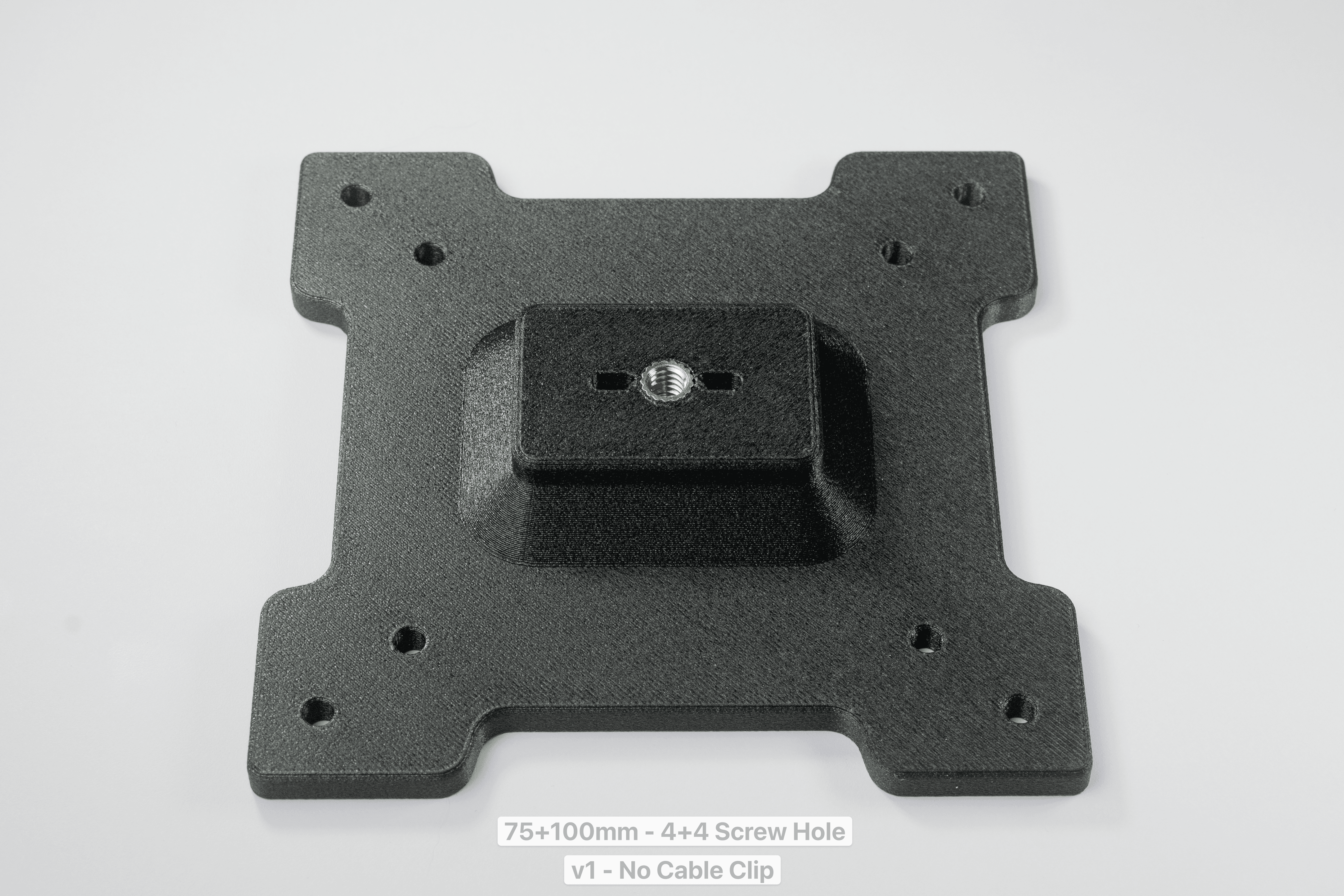

This 75+100mm combo VESA adapter plate enables you to mount your portable monitor to virtually anything. Mount the adapter to your monitor using the included custom thumbscrews, then pair it with any friction arm or clamp that uses a 1/4"-20 thread. This version is designed for portable monitors with x4 VESA screw holes and supports both 75mm and 100mm VESA mounting standards.

I also offer a 2-screw version for monitors like UPERFECT portable displays that only have x2 VESA screw holes.

Video on how they work:
https://youtu.be/Xuy1Fi_Bef8?si=m2AurfSawliAb4U3

Key Features

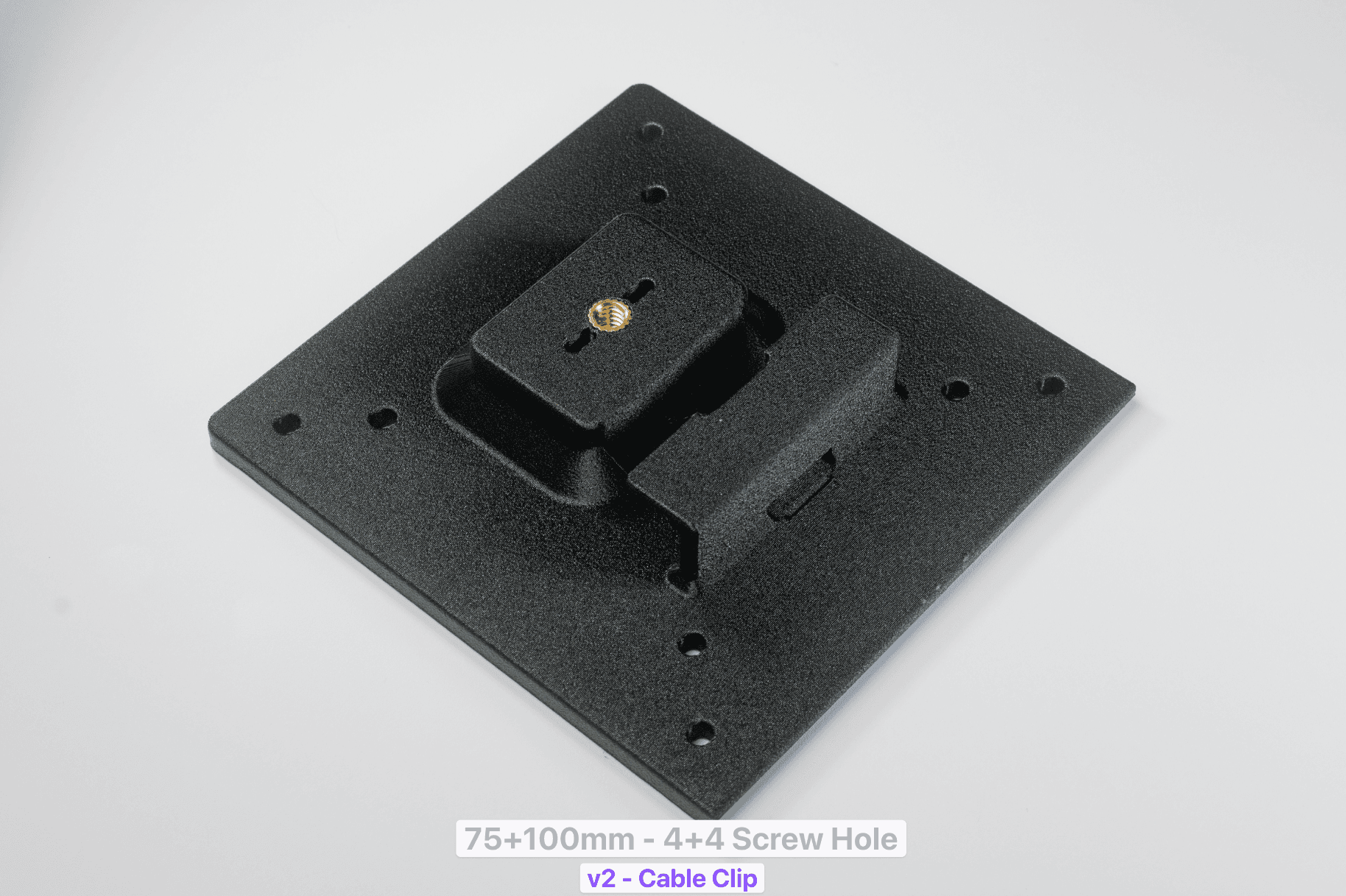

  • NEW v2 now features a built-in cable clip with velcro & zip tie pass-through for cable management

  • Converts VESA 75mm or 100mm to 1/4"-20 for mounting

  • Compatible with 1/4"-20 mounts that use safety pins for anti-rotation

  • 3D printed using black glass-fiber PETG, strong and durable

  • High-quality brass 1/4"-20 threaded insert

  • Custom-designed aluminum screws with 3D printed head

Included in This Kit

  • [x1] 3D printed 75mm/100mm to 1/4"-20 adapter

  • [x1] 1/4"-20 brass threaded insert (installed in adapter)

  • [x4] M4 x 8mm thumbscrews (with flat head compatibility)

Important Notices About Product

  • The VESA adapters are for portable monitors only. Portable monitors typically weigh between 1–3 lbs. While these adapters may physically fit larger monitors, they are not designed to support the additional weight. If using with an iPad or similar device, ensure the total weight does not exceed 8 lbs and test before permanent mounting.

  • All parts are 3D printed using glass fiber PETG filament.

  • NackHabitat uses recyclable shipping materials whenever possible:

    • Some boxes are reused and may show markings, scuffs, bends, or logos

    • Laser-cut cardboard may produce minor dust or paper particles

    • Honeycomb paper wrapping may leave light residue, simply wipe clean

  • SmallRig friction arm and colored anodized thumbscrews shown in photos are not included. As of February 23, 2026, colored thumbscrews have been replaced with custom black or white versions that include a flathead screwdriver slot.
