WALI Wall Mount Bracket Adapter for 1010 Extrusion
April 20, 2025
Table of Contents
Download
Overview

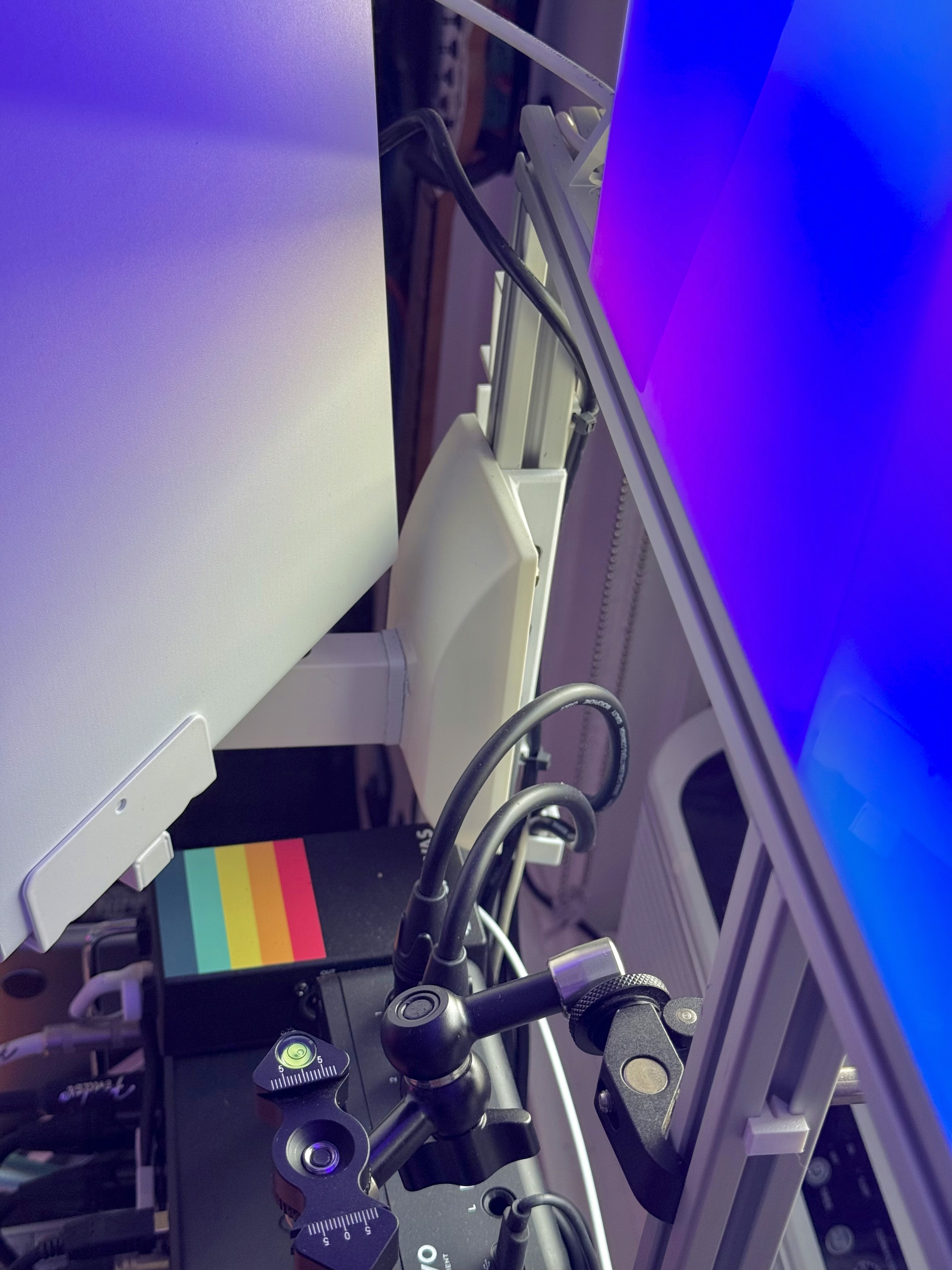

NackHabitat #0063 - WALI Studio Monitor Wall Mount Bracket Adapters 1010 Extrusion
Part A - Right Bracket
Part B - Left Bracket

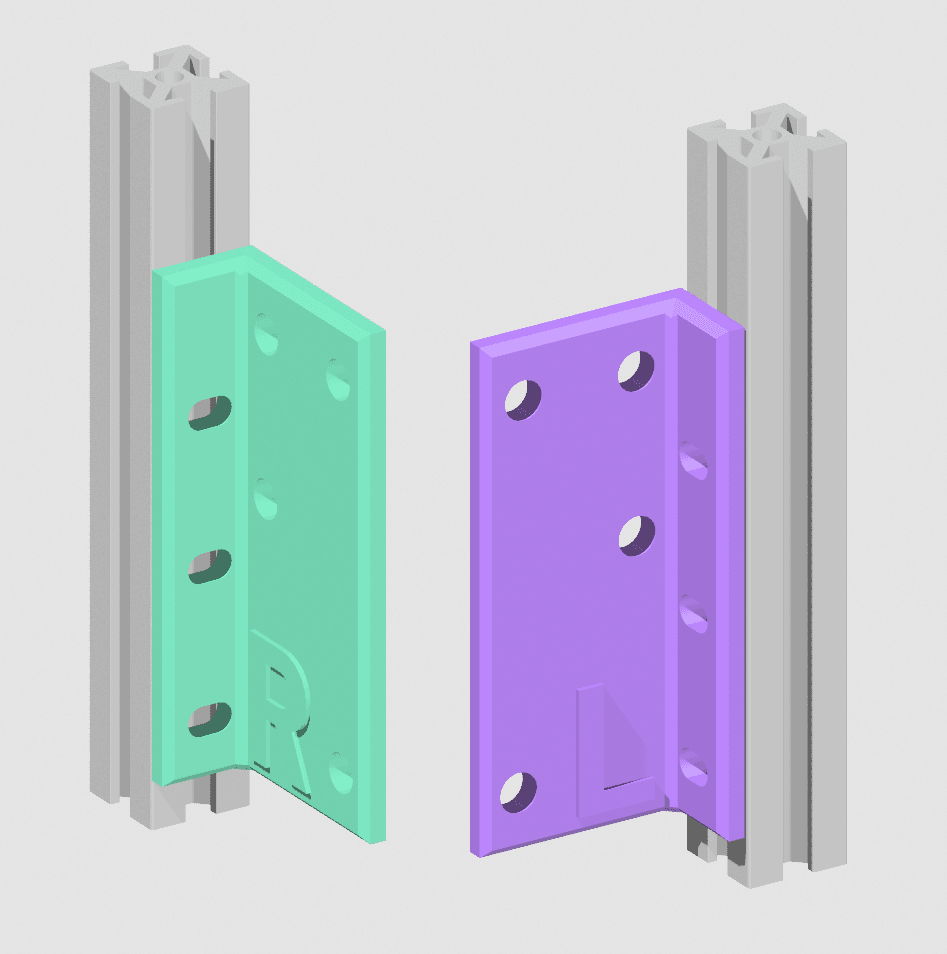

STEP File - Both brackets & 1010 Extrusion (1")

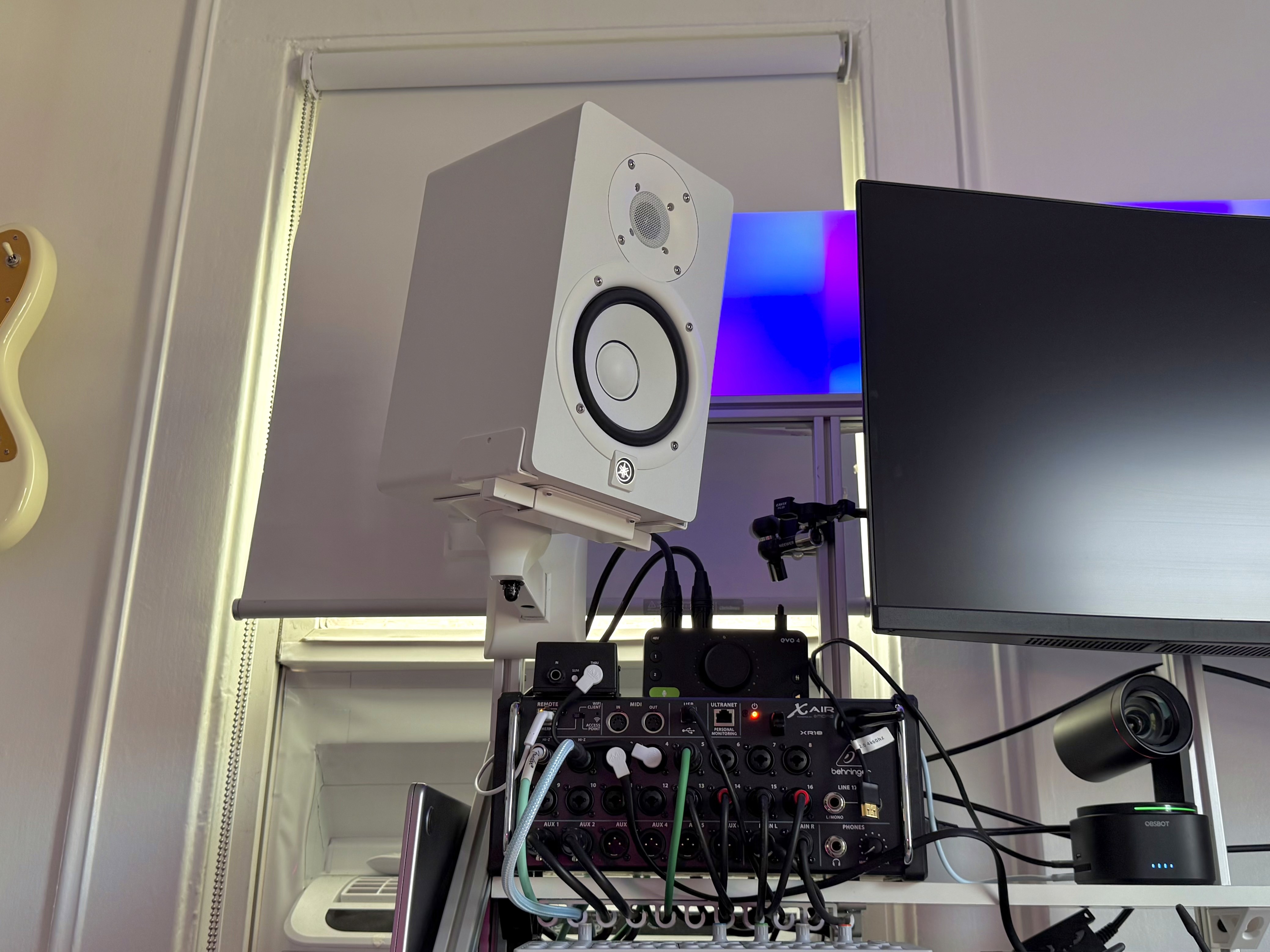

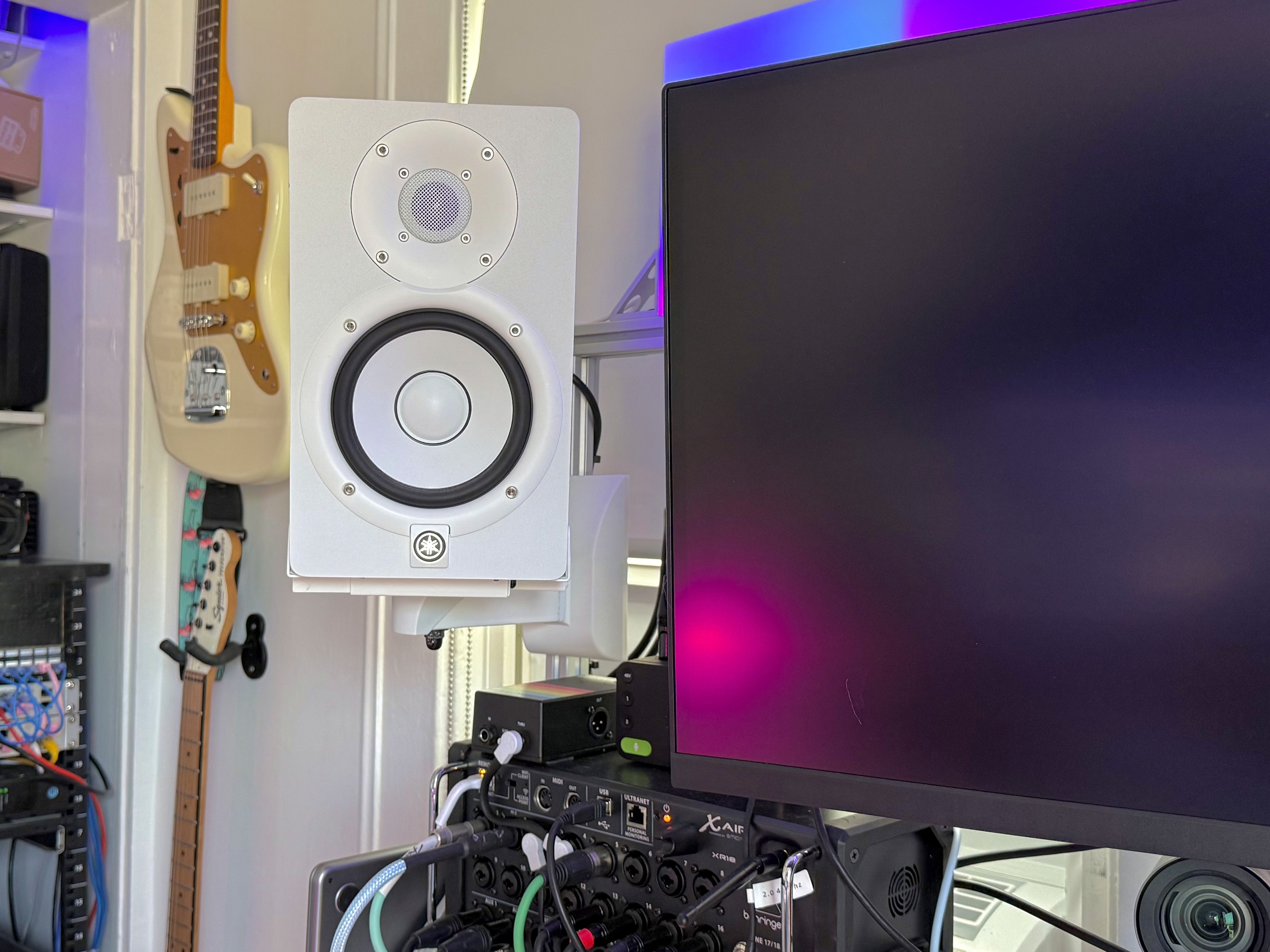

These adapters are meant to be used with these WALI wall mount brackets for studio monitors. If you want more details on the hardware I used and how it's mounted, check out the write up I did here:
Parts
Hardware linked below are affiliate links. If you decide to purchase any of the items, I get a small commission at no cost to you. Thank you for supporting what I do!
WALI Speaker Wall Mounts, Dual Side Clamping Bookshelf Mounting Bracket for Large Surrounding Sound Speakers (Sold in a pair)
1/4”-20 Steel Roll in T-nut with ball spring for aluminum extrusion
Metal washers of choice
1/4"-20 nuts
Assembly Guide

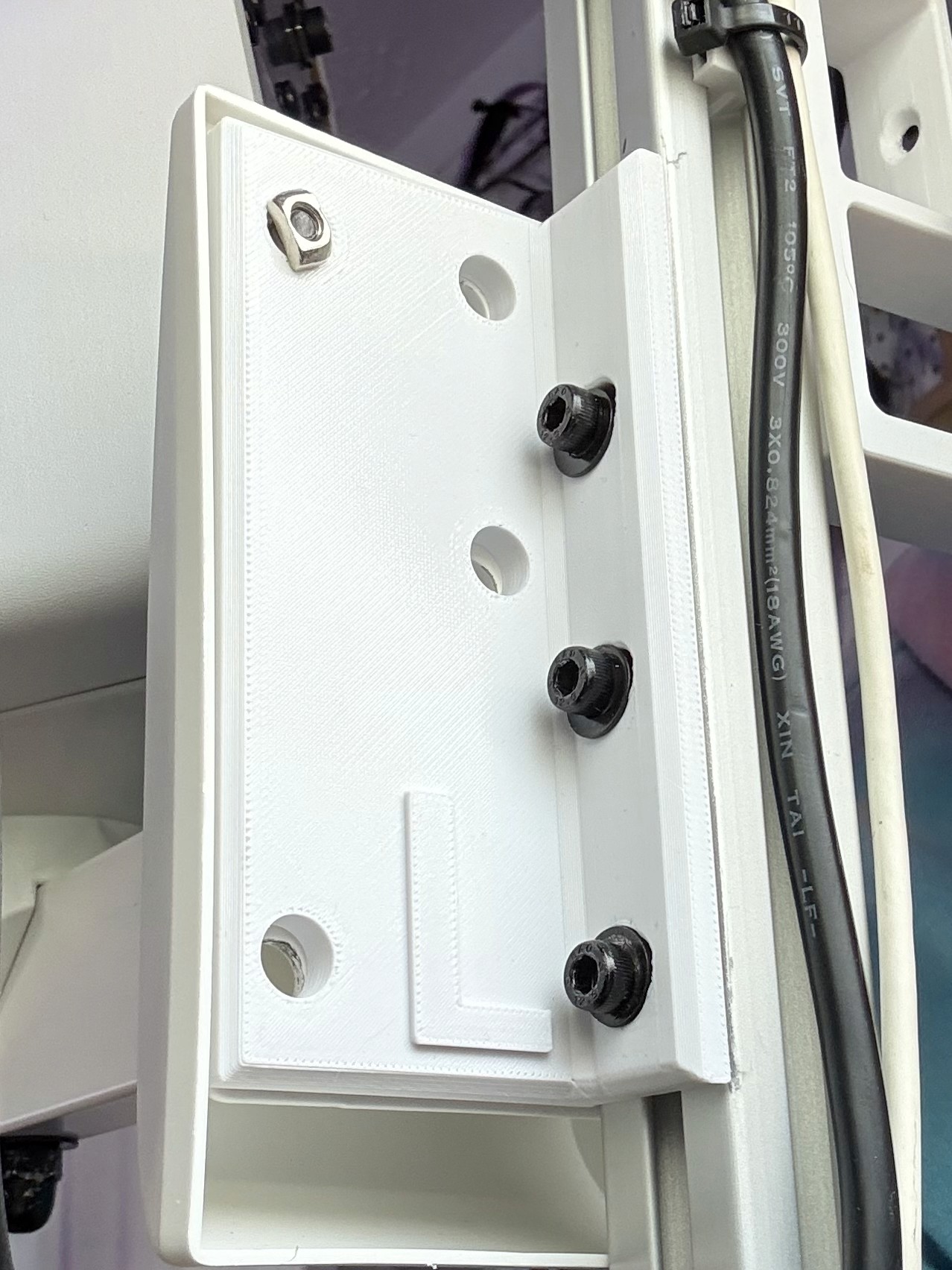

Screws and Nuts

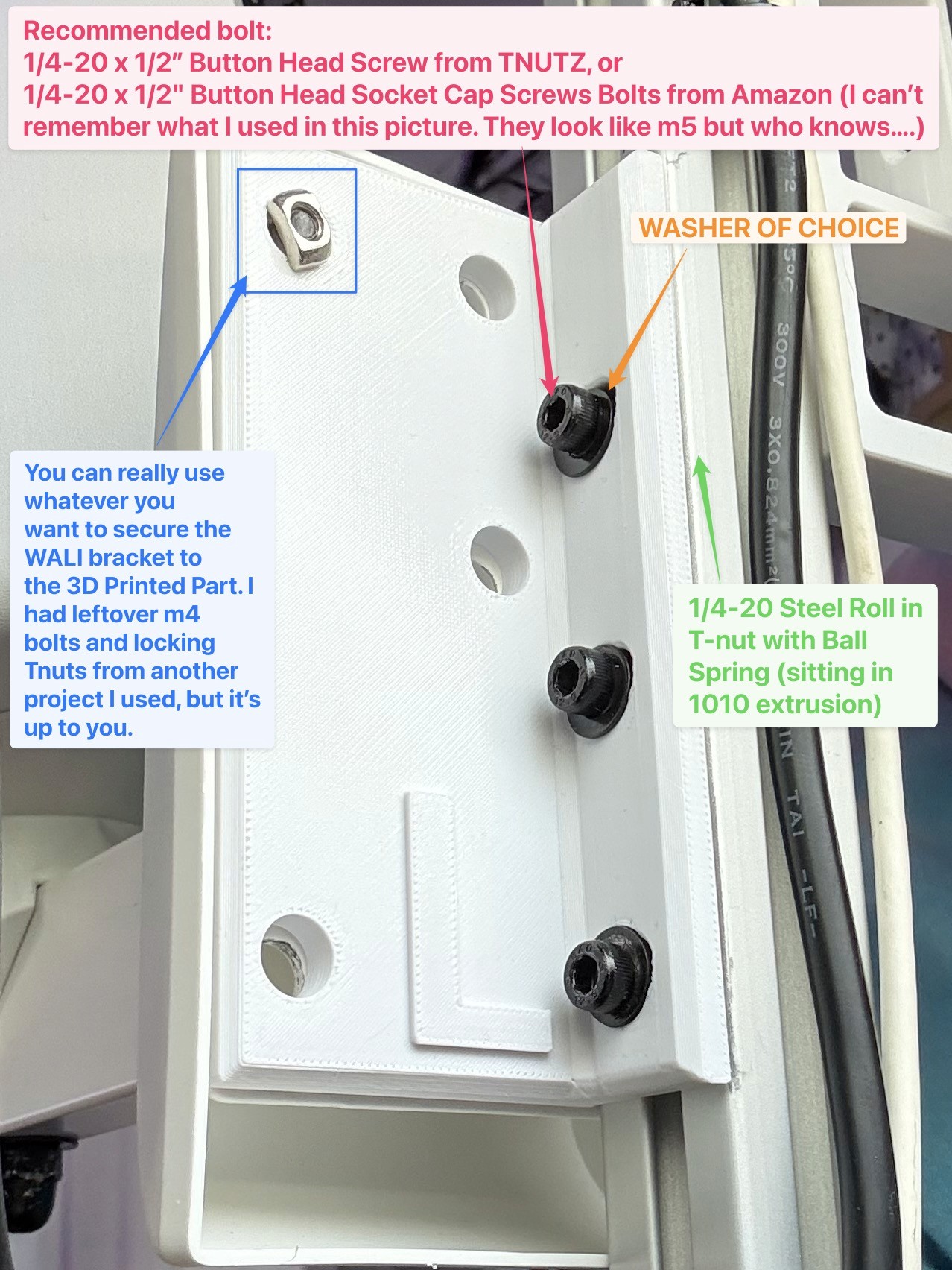

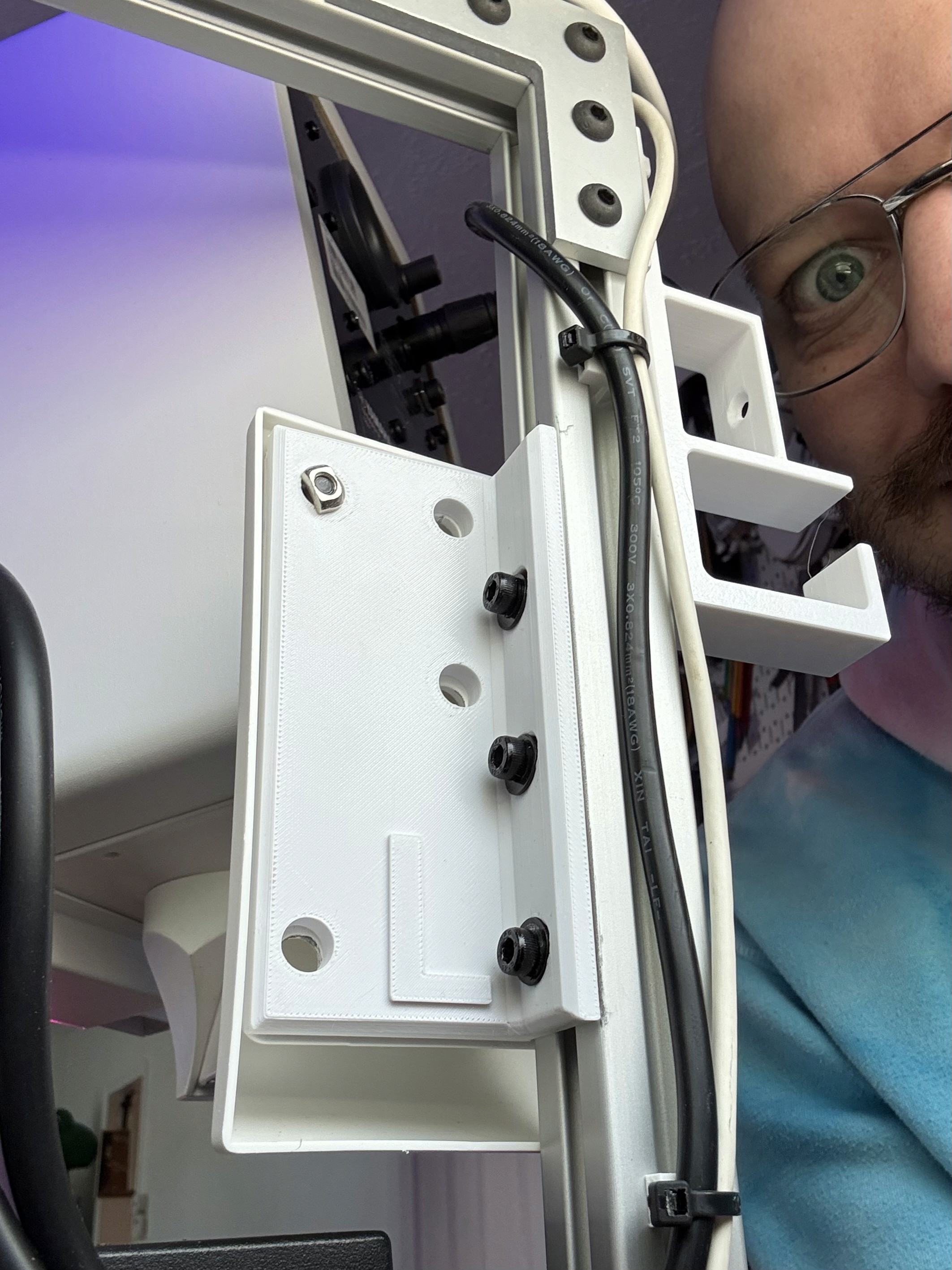

When you are choosing the bots and nuts to secure the WALI bracket to both the 1010 extrusion and the 3D printed adapter, you can really use any compatible hardware that you want.
For securing the WALI brackets to the 1010 aluminum extrusion, I used the 1/4"-20 1/2" bolts that came with my hardware from TNUTZ, but I also used some other bolts with the same specifications that I got off amazon. As long as the bolts and nuts are compatible with the aluminum extrusion, they'll work here. I made the thickness of the 3D printed part similar to the thickness of aluminum brackets I purchased, so I wouldn't have to find screws with different lengths.
For securing the WALI brackets to the 3D printed parts, you can really use whatever hardware you want for this. The pilot holes in the print are the same all around, so if you wanted to use more of the 1/4"-20 1/2 bolts that you use for extrusion, but instead the extrusion drop-in spring nuts from TNUTS just use a standard 1/4"-20 hex nut or locking nut, that'll do just fine.
