Fume Extractor Boom Arm Mod
Fume Extractor Boom Arm Mod
Fume Extractor Boom Arm Mod
Fume Extractor Boom Arm Mod
Fume Extractor Boom Arm Mod
Fume Extractor Boom Arm Mod
Fume Extractor Boom Arm Mod

Fume Extractor Boom Arm Mod

Table of Contents

Overview

Tools

Parts

Assembly Guide

Download

Click here to download files from Thangs.com
✅ STL
✅ STEP
✅ 3MF

Overview

Thank you for checking out the project guide for the MUIN Fume Extractor boom mount. I like to keep as much off the desk as possible, and having the fume extractor taking up space pissed me off within 7 minutes. I designed this housing to fit around the MUIN fume extractor that can be bought on Amazon, giving me the ability to mount the extractor to a boom arm instead of having it sit on the desk. It's a 2-piece print that used a few magnets to keep the top on, allowing for easy and painless access to filtration and filters.

Tools

  1. Soldering Iron (my pick)

  2. Knife

  3. Hex Key (my pick)

  4. Phillips Head Screwdriver

For a list of my favorite tools that I use all the time, visit my Amazon storefront by clicking here.
⚠️ Disclaimer: All Amazon storefront links are affiliated

Slicer Settings
Lightweight print settings: one wall, two top and bottom layers, 5 percent gyroid infill, no supportsSturdy print settings: four walls, four top and bottom layers, 15 percent gyroid infill, no supportsFume extractor enclosure positioned in the slicer for printing

Assembly Guide

While it was a little bit flimsy, it did work! I would recommend beefing it up a bit though.

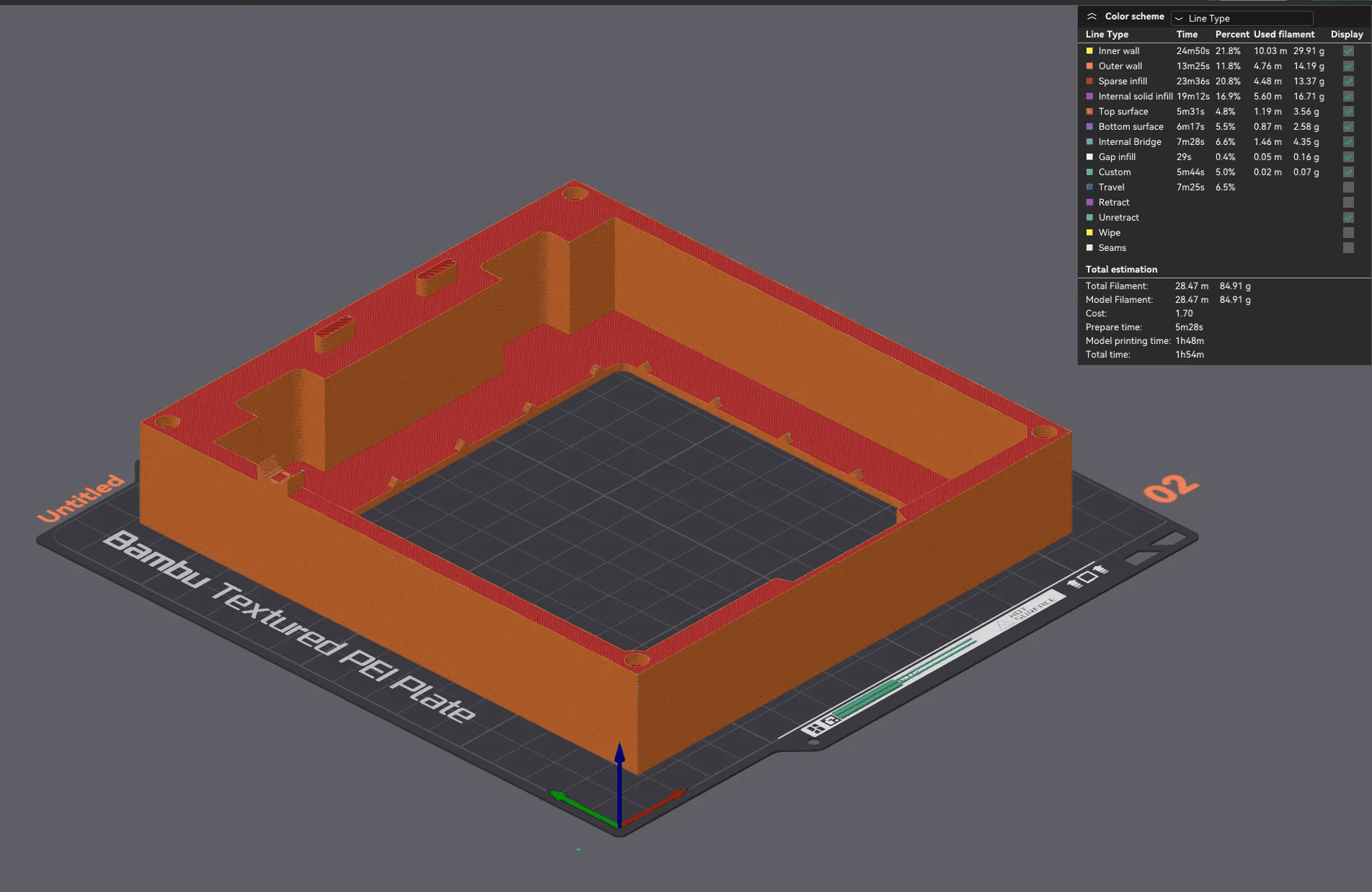

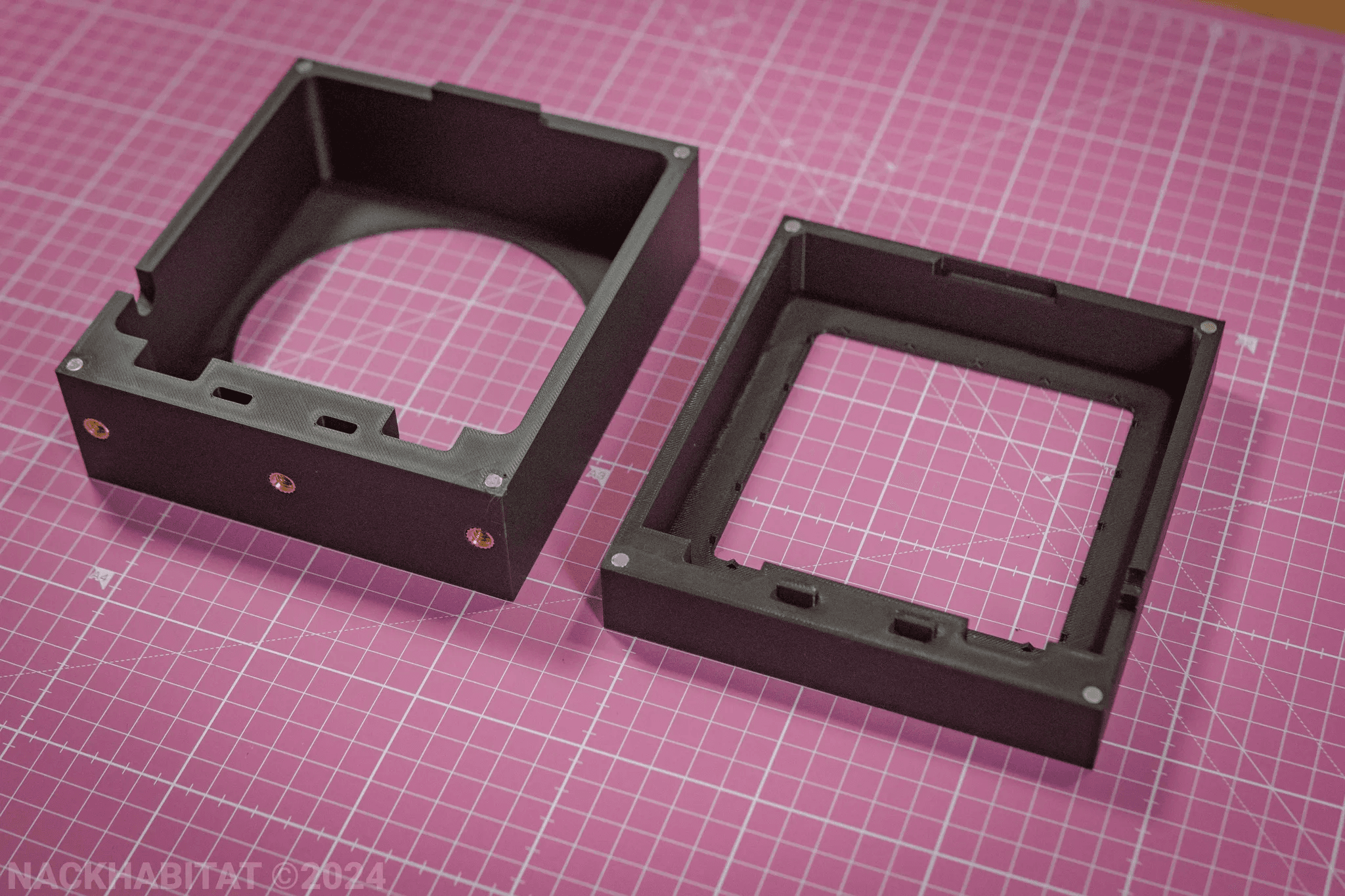

Bottom enclosure shell oriented flat on the slicer build plateTop enclosure shell oriented flat on the slicer build platePrinted bottom and top enclosure shells, viewed from insideCircular fan opening in the bottom shell and square filter opening in the top shellExterior faces of the printed bottom and top enclosure shells

Once your two parts are printed, using either a regular press or a heat press:

  1. Press all x8 5mm x 3mm magnets into their holes in each corner.

  2. Heat press all x3 1/4” heat threaded inserts into the PART A - Bottom

Note

I made the holes for the 5mm (D) magnets 5.2mm, so it should just be enough to push the magnets into place if you just wanted to put a glob of super glue in the hole. Or, you can use a head press to push the magnets into place.

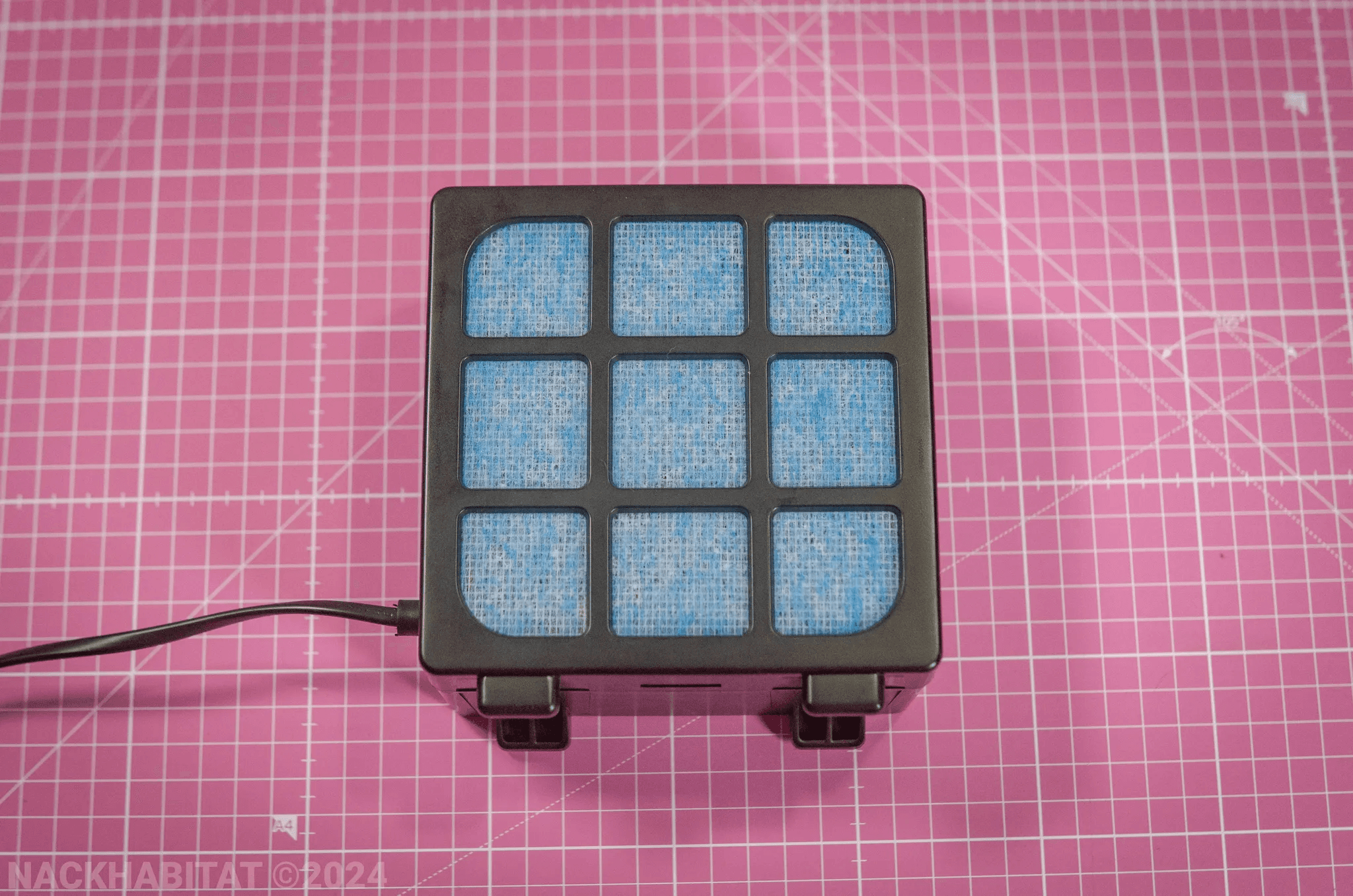

Here is what the MUIN fume extractor looks like on it’s own:

Original fume extractor with its blue filter and front grille

And here is what it looks like disassembled. The part holding the filter (far right of below image) can be removed as it’s not needed. Once

Fan, carbon filter, blue prefilter, and grille laid out separately

Take the “PART A - BOTTOM” part and lay it flat on the desk. Take the MUIN fume extractor with the filter facing up towards you, press the fume extractor into the PART A. The bottom feet of the extractor are mean to

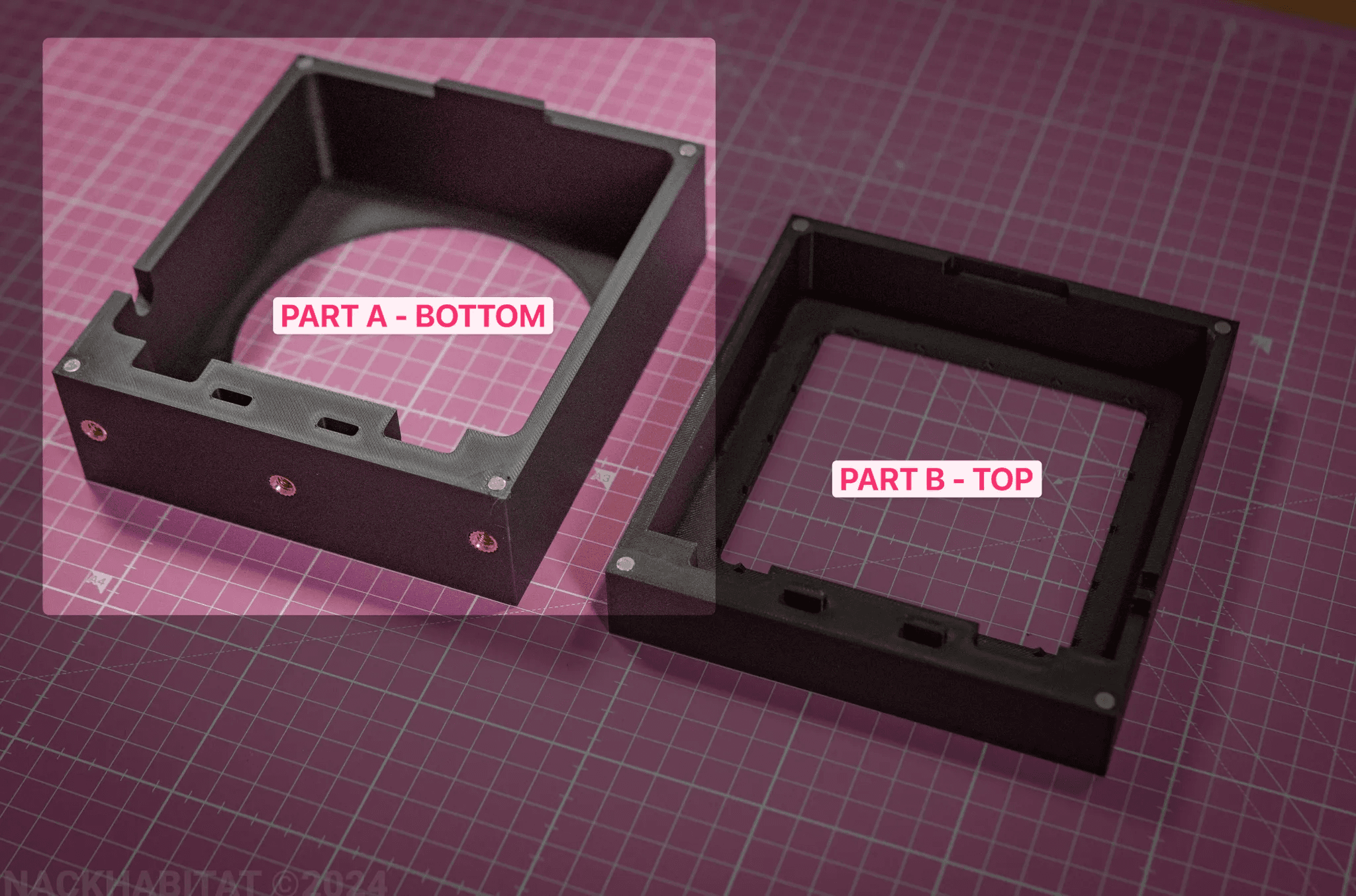

Enclosure parts identified: A bottom shell and B top shell

The bottom feet of the extractor are mean to slide into the cutout grooves of the PART A piece.

These are the feet of the fume extractor:

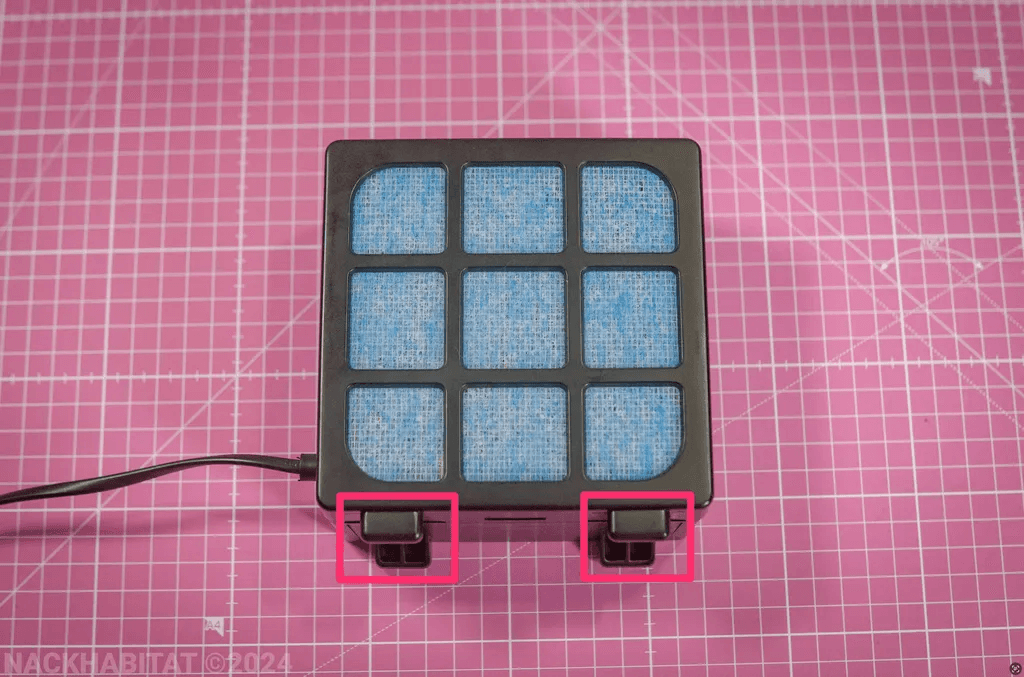

Two front grille retaining clips highlighted for removal

These are the grooves of the 3D printed part:

Two lower slots in the original fan frame highlighted for disassembly

Here is what the fume extractor looks like slid into the 3D printed bottom part. The face of the fume extractor that is facing the camera is the side where the filter rests.

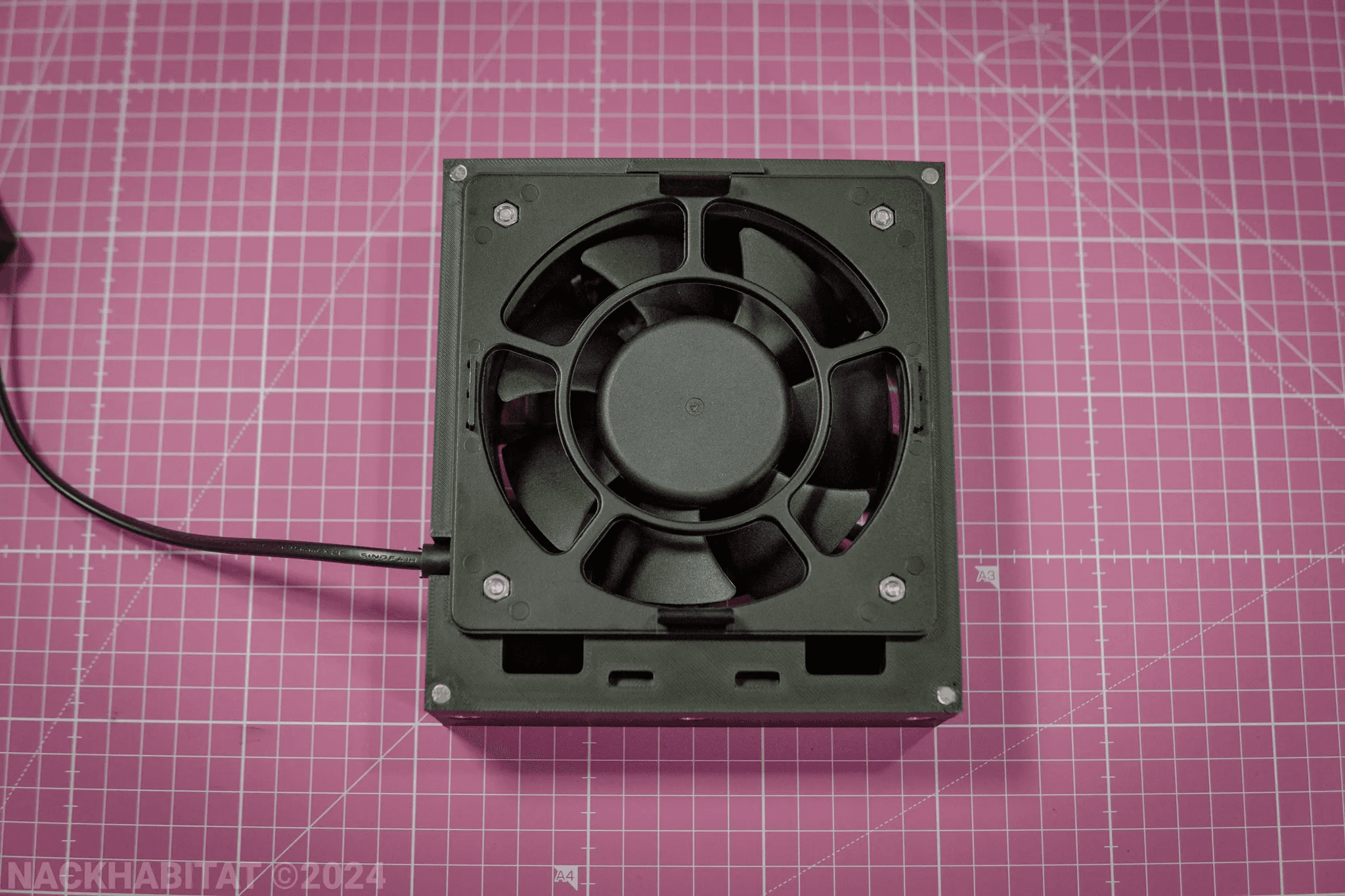

Original fan exposed after removing the front filter grille

You can then place the filtration part and the filter on top of the MUIN.

Carbon filter layer placed over the fanBlue prefilter placed over the carbon filter layer

Then push the PART B - TOP part down on top of everything. The small teeth that printed on this part keep the flimsy blue filter in place. The final product should look like this!

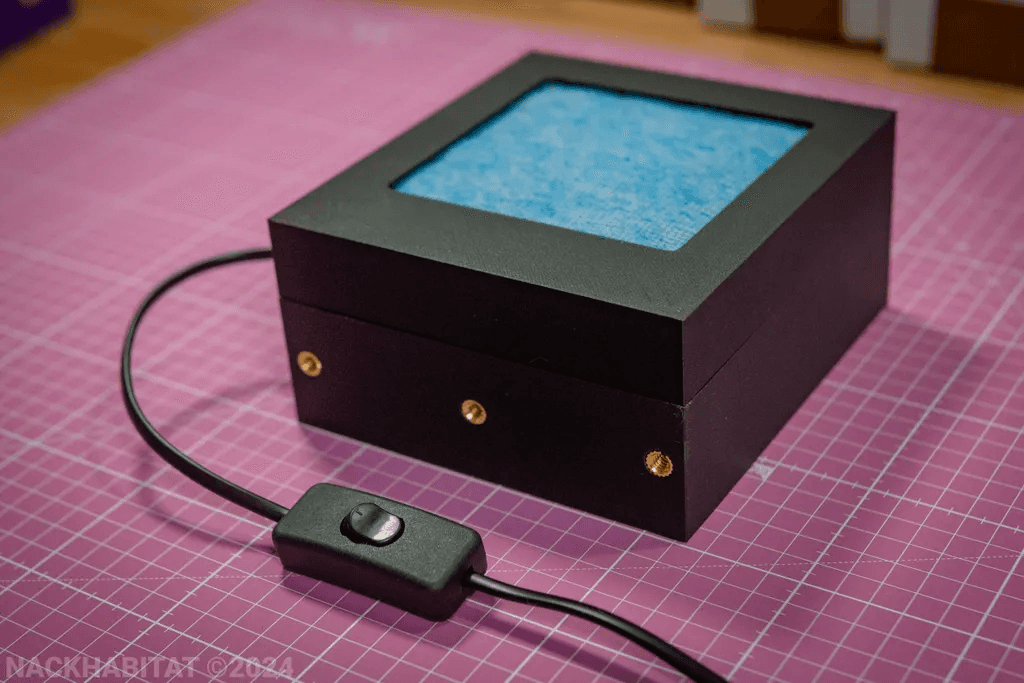

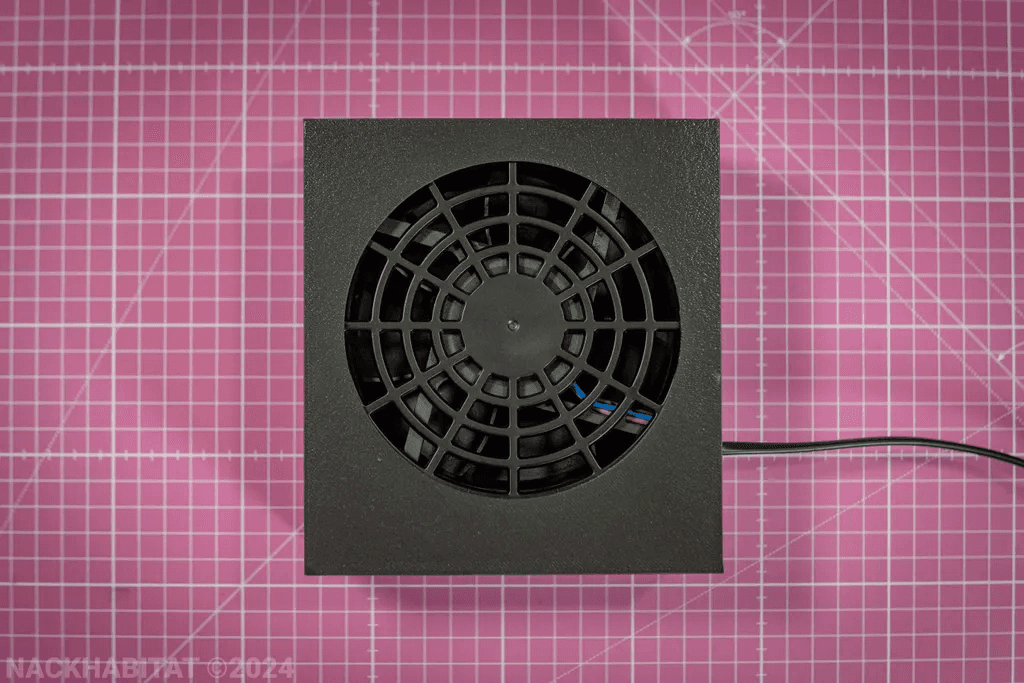

Replacement enclosure assembled around the fan and filterCompleted enclosure with three threaded boom-arm mounting holesRear fan grille visible through the enclosure's circular openingRear of the assembled enclosure with threaded mounting inserts

You are now ready to mount to your boom arm of choice!

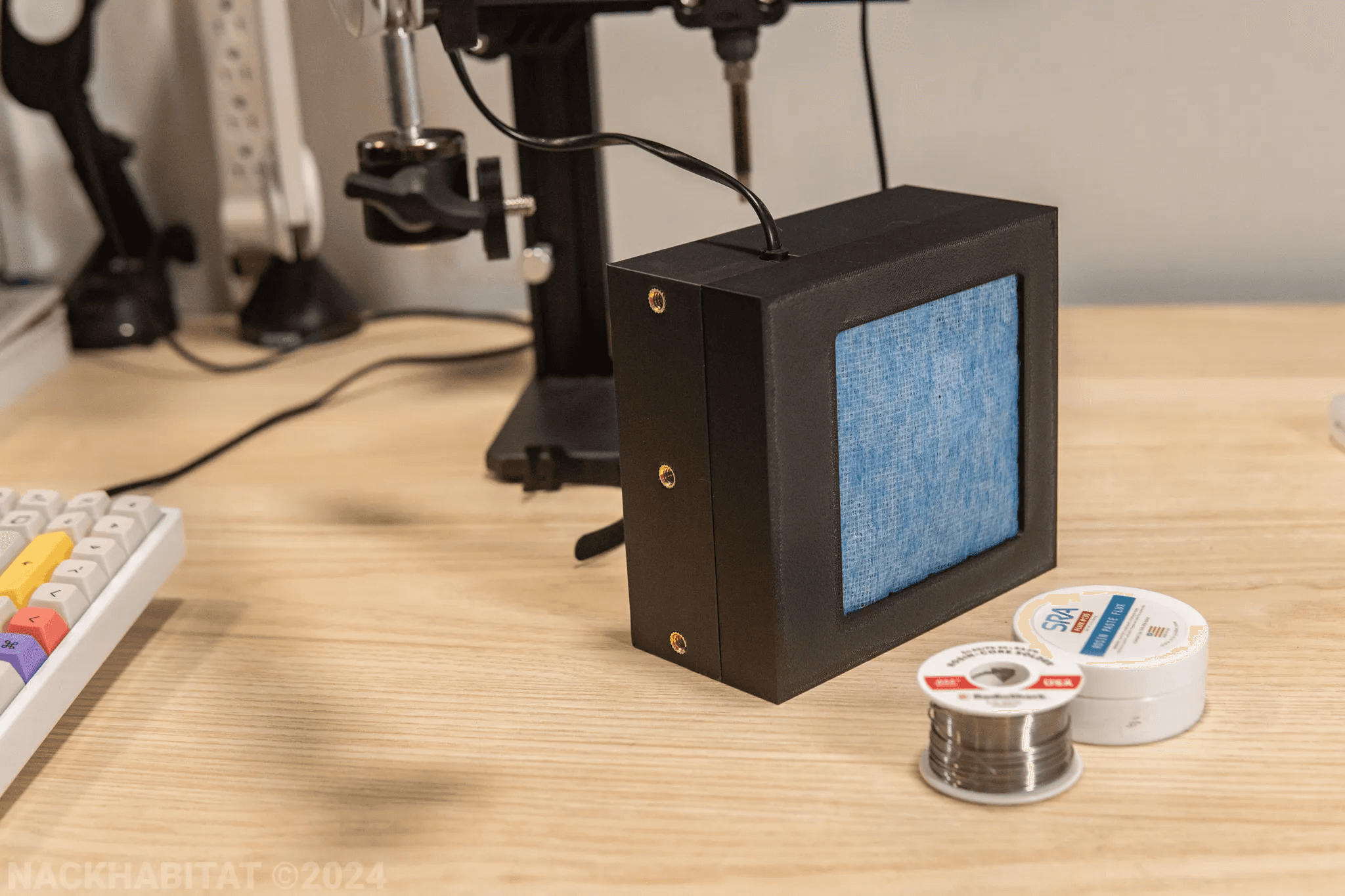

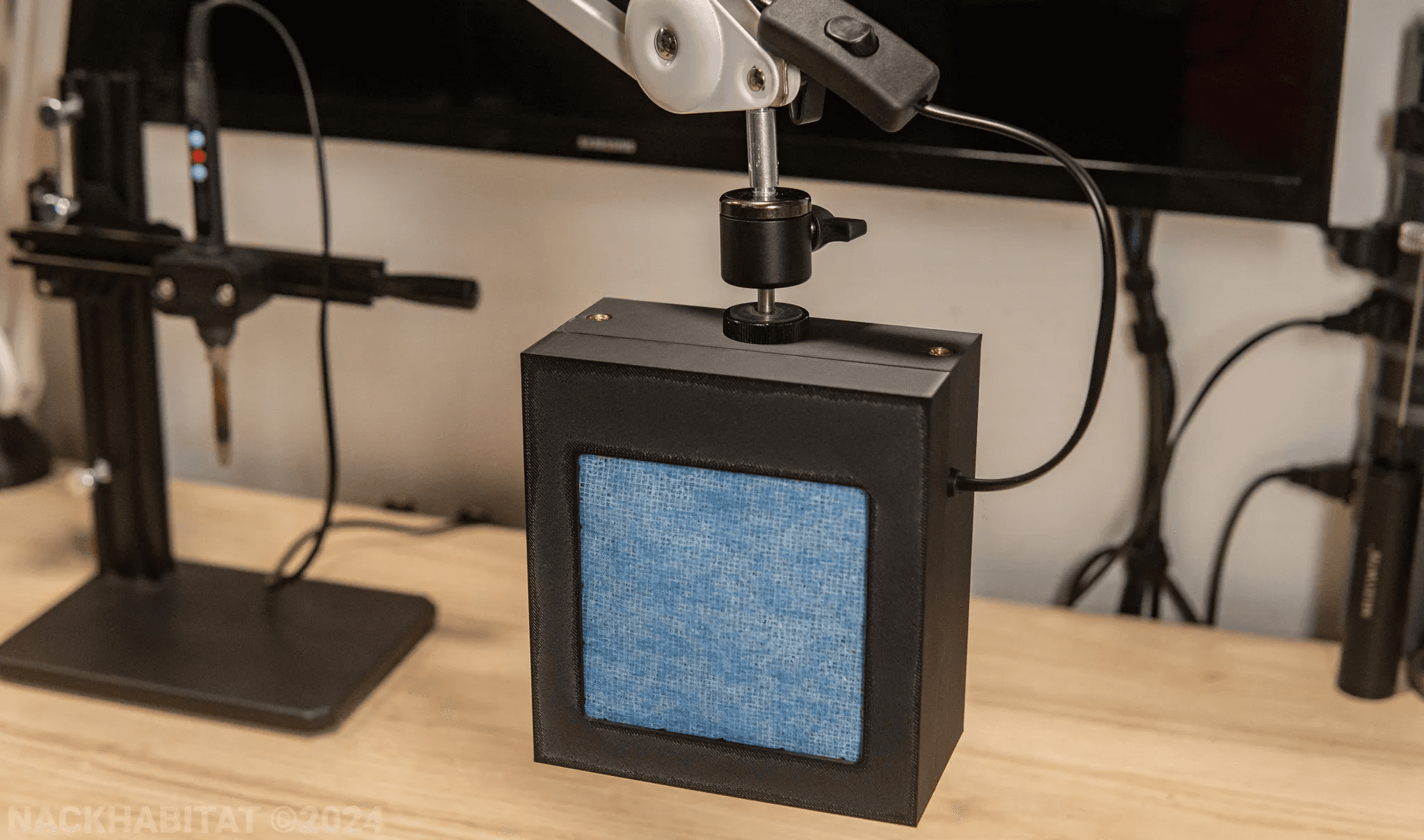

Completed fume extractor suspended from the adjustable boom armFume extractor positioned above a soldering workbenchFume extractor attached to the boom arm using its top threaded insertFume extractor attached using a side mounting pointBoom arm positioning the fume extractor beside a soldering ironFume extractor standing on the workbench beside solder spoolsCompleted fume extractor enclosure and boom-arm modification
